Thermostat Cable

Application:Wiring of Thermostat Controls, Heating & Air Conditioning Equipment, Doorbells & other low voltage applications. Physical Characteristics:Conductor：Solid Bare CopperInsulation Material: FR-Retardant PVCRip Cord: OptionalJacket Material: FR-Retardant PVC Data table:No. Of CoresConductor Size (AWG)Insulation DiameterOverall DiameterInsulation ColorJacketColor2180.057” (1.45mm)0.148” (3.76mm)Red WhiteBrown3180.057” (1.45mm)0.150” (3.81mm)Red White GreenBrown4180.057” (1.45mm)0.173” (4.40mm)Red White Yellow BlueBrown5180.057” (1.45mm)0.18...

Contáctanos

Consulta en línea

E-mail：pony@hiliion.com

Whatsapp：+86 137 5084 5392

Introducción detallada

Application:
Wiring of Thermostat Controls, Heating & Air Conditioning Equipment, Doorbells & other low voltage applications.

Physical Characteristics:
Conductor：Solid Bare Copper
Insulation Material: FR-Retardant PVC
Rip Cord: Optional
Jacket Material: FR-Retardant PVC

Data table:

No. Of Cores	Conductor Size (AWG)	Insulation Diameter	Overall Diameter	Insulation Color	Jacket Color
2	18	0.057” (1.45mm)	0.148” (3.76mm)	Red White	Brown
3	18	0.057” (1.45mm)	0.150” (3.81mm)	Red White Green	Brown
4	18	0.057” (1.45mm)	0.173” (4.40mm)	Red White Yellow Blue	Brown
5	18	0.057” (1.45mm)	0.188” (4.80mm)	Red White Green Blue Yellow	Brown
6	18	0.057” (1.45mm)	0.197” (5.00mm)	Red White Green Blue Yellow Brown	Brown
8	18	0.057” (1.45mm)	0.217” (5.50mm)	Red White Green Blue Yellow Orange Black Brown	Brown
10	18	0.057” (1.45mm)	0.248” (6.30mm)	Red White Green Blue Yellow Orange Black Brown Pink Grey	Brown
12	18	0.057” (1.45mm)	0.295” (7.50mm)	Red White Green Blue Yellow Brown Orange Black Pink Grey Tan Purple	Brown
2	20	0.048” (1.22mm)	0.130” (3.30mm)	Red White	Brown
3	20	0.048” (1.22mm)	0.130” (3.30mm)	Red White Green	Brown
4	20	0.048” (1.22mm)	0.142” (3.61mm)	Red White Yellow Blue	Brown
5	20	0.048” (1.22mm)	0.155” (3.94mm)	Red White Green Blue Yellow	Brown
6	20	0.048” (1.22mm)	0.167” (4.24mm)	Red White Green Blue Yellow Brown	Brown
8	20	0.048” (1.22mm)	0.189” (4.80mm)	Red White Green Blue Yellow Orange Black Brown	Brown
10	20	0.048” (1.22mm)	0.207” (5.26mm)	Red White Green Blue Yellow Orange Black Brown Pink Grey	Brown
12	20	0.048” (1.22mm)	0.224” (5.69mm)	Red White Green Blue Yellow Brown Orange Black Pink Grey Tan Purple	Brown

Electrical and Environmental Properties：
DC Resistance(20 ℃): 18AWG:≤21.5 Ohms/m

20AWG:≤33.5 Ohms/m
Operating Voltage: 300 Volts Max
Installation: 0 to +60 ℃
Storage & Operation: -20 to +75 ℃

Legend (Surface Ink Print)::
TIANJIE E230636 18 or 20 AWG (*) COND 60C (UL) TYPE CL2R CMR (UL) C(UL) SUNLIGHT RESISTANT (Quality Tracking No.) ***FT

Packing:

Option A): 250ft/plastic reel or metal reel, 4 reels/carton, pallet packing

Option B): 250ft/wooden reel，pallet packing

Option C): As per buyer's option

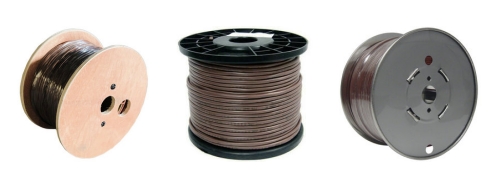

Packing Image：
